9523
Product family
4
Number of Pole
200
Rated Current

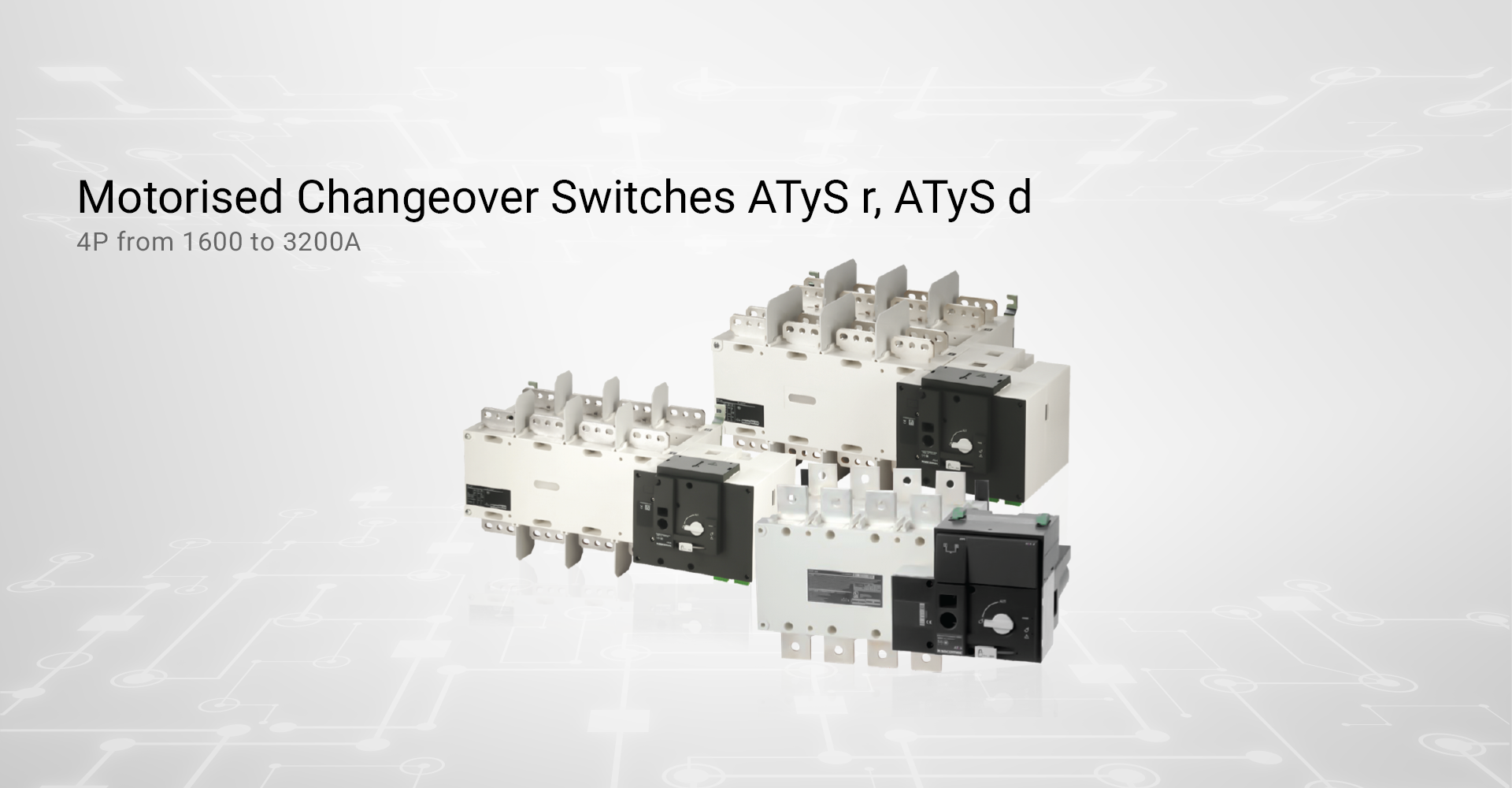

| Type | Motorised Changeover Switches | |||
|---|---|---|---|---|
| ATyS r [9523] | ATyS d [9533] | |||
| Switching type | Auto , manual mode selector switch | |||
| Number of poles | 4P | |||
| Rated current | 1600A | 2000, 2500, 3200A | 2000, 2500, 3200A | |
| Auxiliary power supply | 230VAC (208 -277Vac ±20%) | 2 x 230VAC (208 -277Vac ±20%) | ||
| Operating handle | I-0-II | |||
| Interlock able | Yes | |||
| Operating cycles | 3000 | Standard | IEC 60947-6-1, IEC 60947-3 GB/T14048-11 | |
| Terminal | Connection | Busbar 90mm | ||
| Torque N.m | 45 N.m | |||
| Mount | Back-plate mounting | |||
| Rated operating voltage | 400~690VAC | |||
| Degree of protection | IP20 | |||

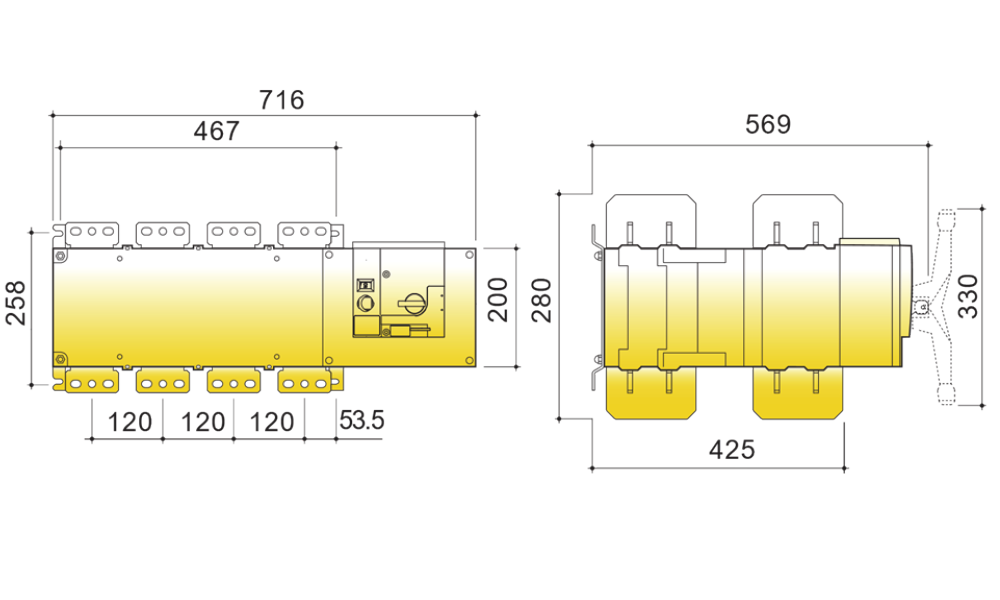

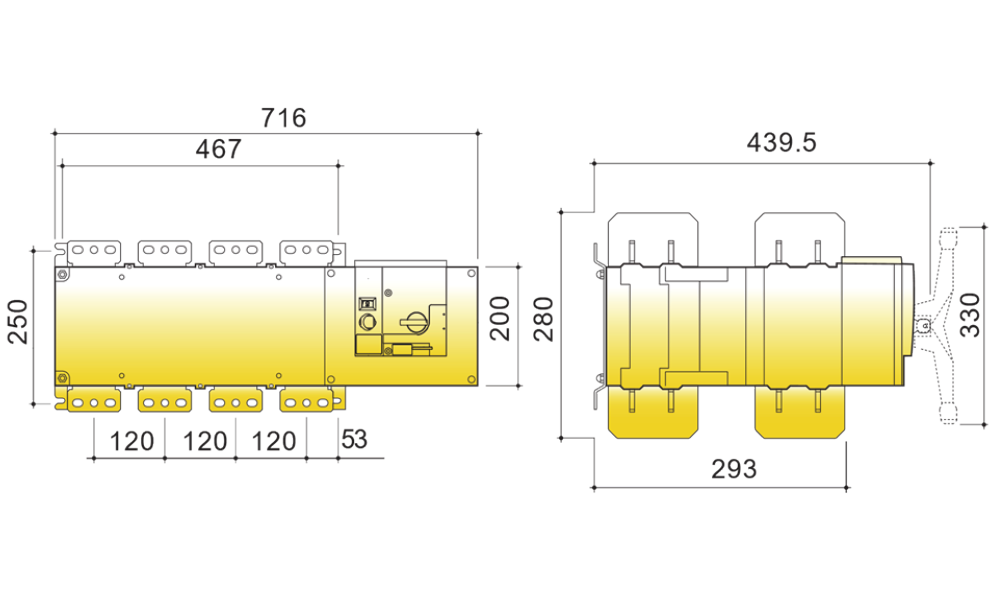

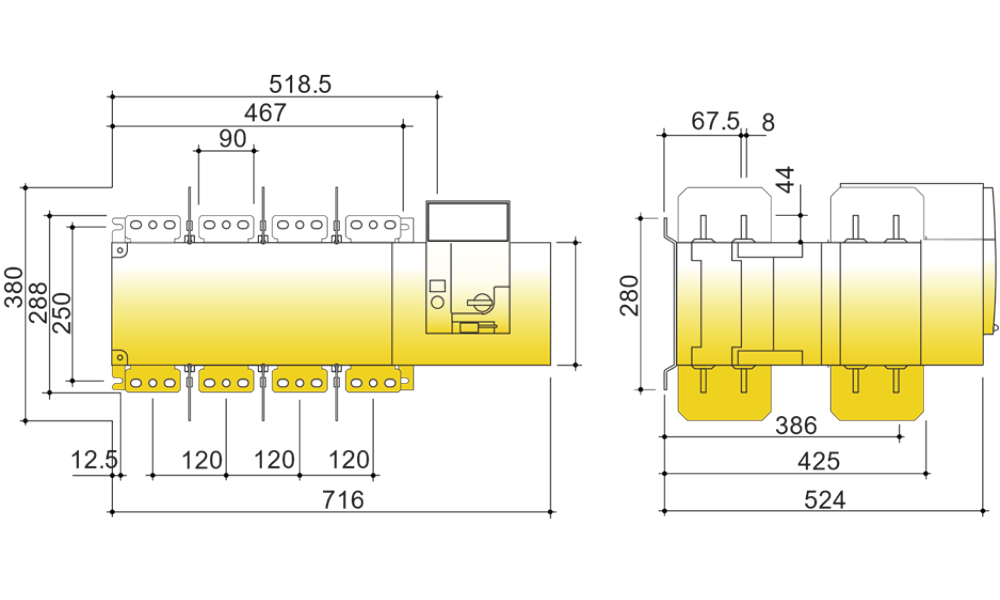

| Dimension |
|
|
|
|
