2600
Product family
3
Number of Pole
401
Rated Current
| Type | Load Break Switches | ||
|---|---|---|---|
| Sirco [2600] | |||
| Switching type | Direct handle / External | ||
| Number of poles | 3P, 4P | ||
| Rated current | 4000, 5000A | ||
| Rated voltage [Ue] | 415 VAC/ 500VDC | ||
| Operating handle | Front operation | ||
| Rated operating voltage[V] | 400~500 | ||
| Operating cycles | 2000 | Standard | IEC 60947-3 |
| Terminal | Connection | Busbar 100mm | |
| Torque N.m | 40 N.m | ||
| Mount | Back plate mounting | ||
| Interlock able | Yes | ||
| Degree of protection | IP20 | ||

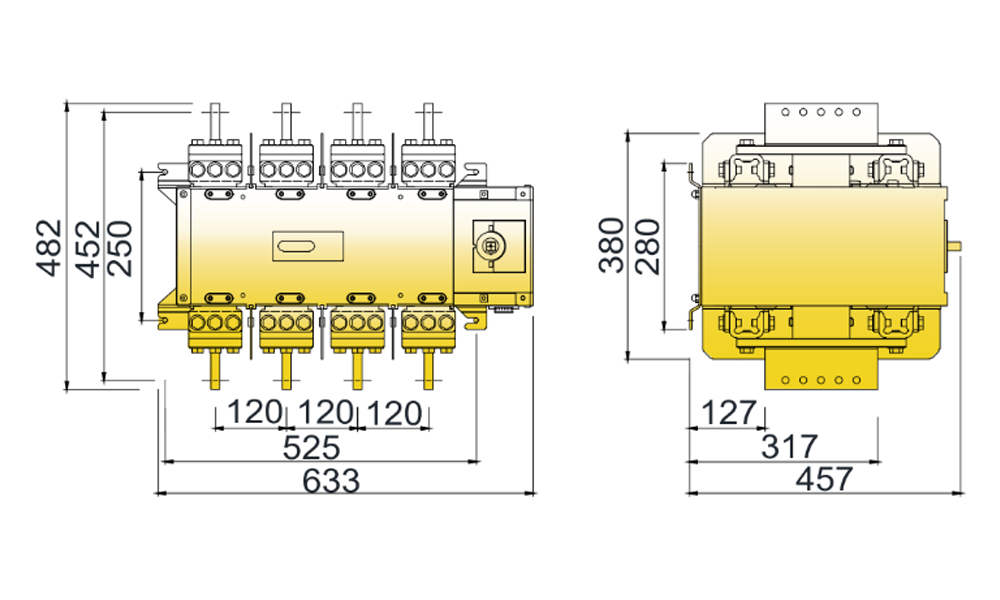

| Dimension |
|
||
