K2
Type 2 lmax 50kA
4P
Number of Pole
275
Uc max. Voltage
M
Remote signaling

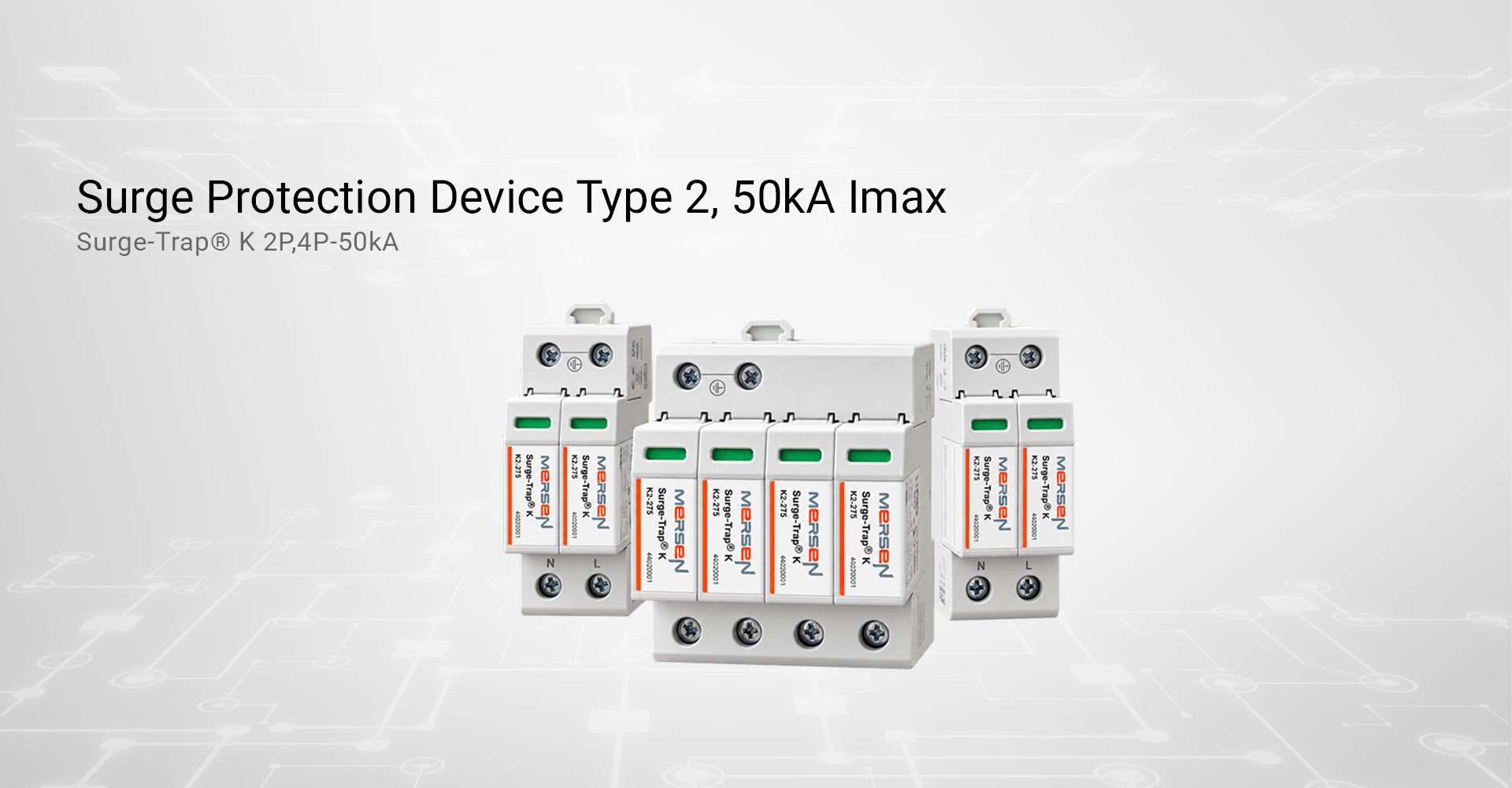

| Type | Surge Protection Device Type 2, 50kA Imax (8/20) | |||
|---|---|---|---|---|
| K2-2P275 | K2-4P275 | K2-4P275M | ||
| Number of pole | 2, 4P | |||
| Normal voltage AC [Un] | 230/400VAC | |||
| Continuous voltage [Uc] | 275V | |||
| Nominal discharge current In 8/20µs | 20kA | |||
| Max. discharge current Imax 8/20µs | 50kA | |||
| Voltage protection level at In – [Up] | ≤1,5 kV | |||
| Relay output | No | 1 C/O 1A at 30VDC, 0.5A at 250VAC | ||
| Standard | IEC/EN61643-11 | |||
| Ambient conditions | Operating Tem. | – 40°C to +85°C | ||
| Max altitude | 4000 m | |||
| Mount | On 35mm DIN rail | |||
| Width | 18mm per Pole | |||
| Terminal | Screw, Flexible 25mm², Rigid 35mm² | |||

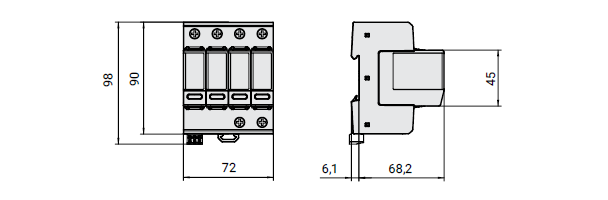

| Dimension |
|
|||
