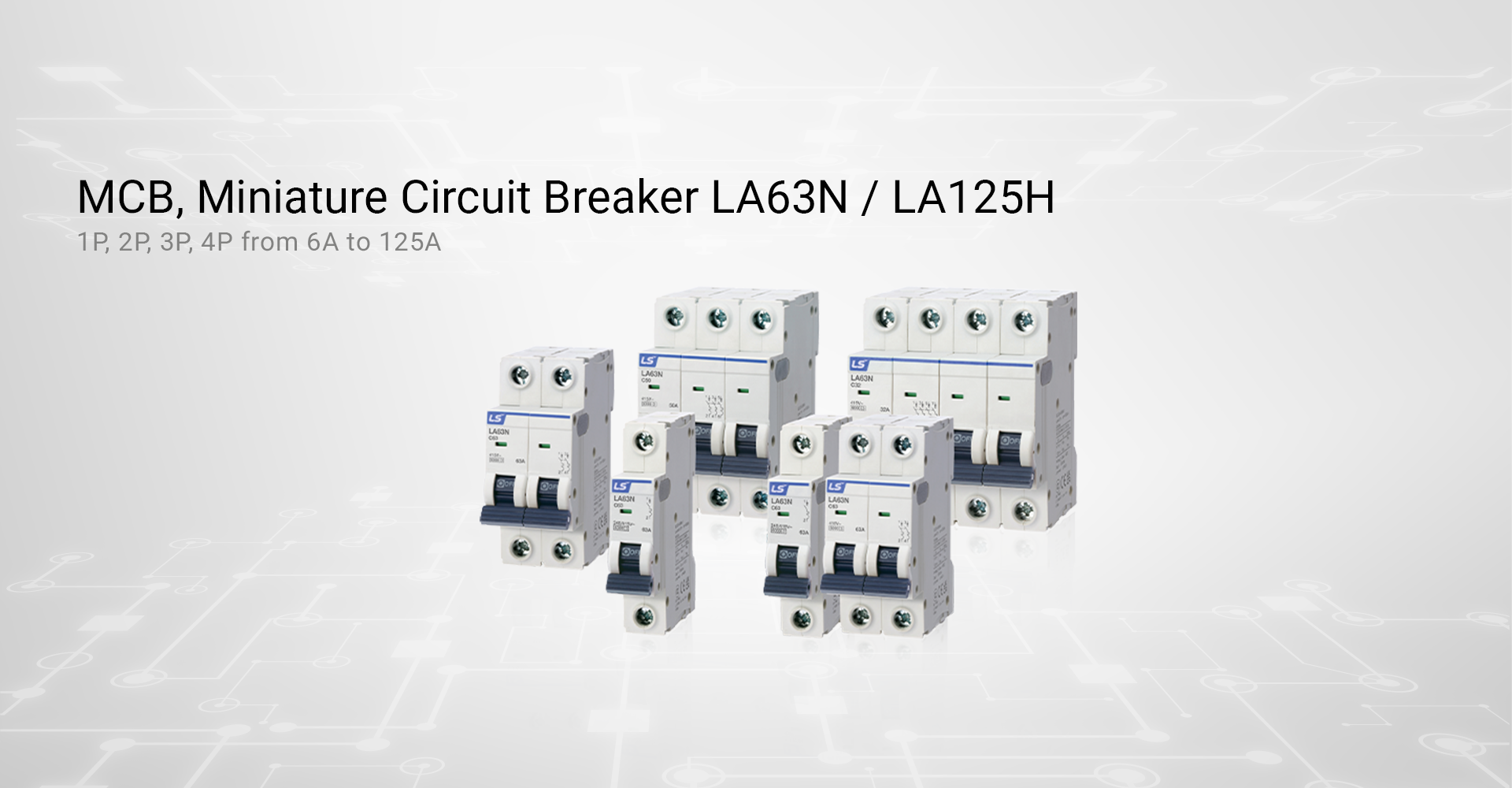

Type MCB, Miniature Circuit Breaker
LA63N LA125H
Protection Overcurrent and short circuit Overcurrent and short circuit
Rated current [In] 6, 10, 16, 20, 25, 32, 40, 50, 63A [6A] 63, 80, 100, 125A [63A]
Curve C [C] C [C]
Number of poles 1P, 2P, 3P, 4P [1P] 2P, 3P, 4P [2P]
Breaking capacity 6kA 10kA
Rated voltage [Ue] 240/415VAC, 70/125VDC 400/415VAC
Standard IEC/EN 60898-1, IEC 60947-2 IEC 60947-2
Type of trip Thermal/ magnetic release Thermal/ magnetic release
Endurance Electrical 10,000 operations 1,500 operations
Mechanical 20,000 operations 10,000 operations
Mount On 35mm DIN rail On 35mm DIN rail
Width 17.6mm per pole 26.7mm per pole
Terminal Lug type (Cable up to 25mm²) Lug type (Cable up to 50mm²)

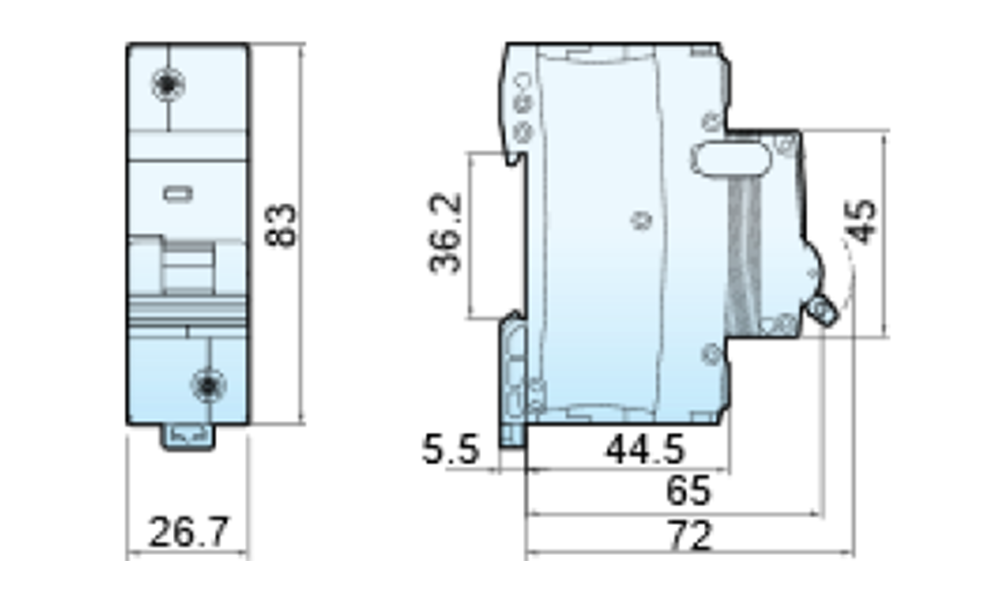

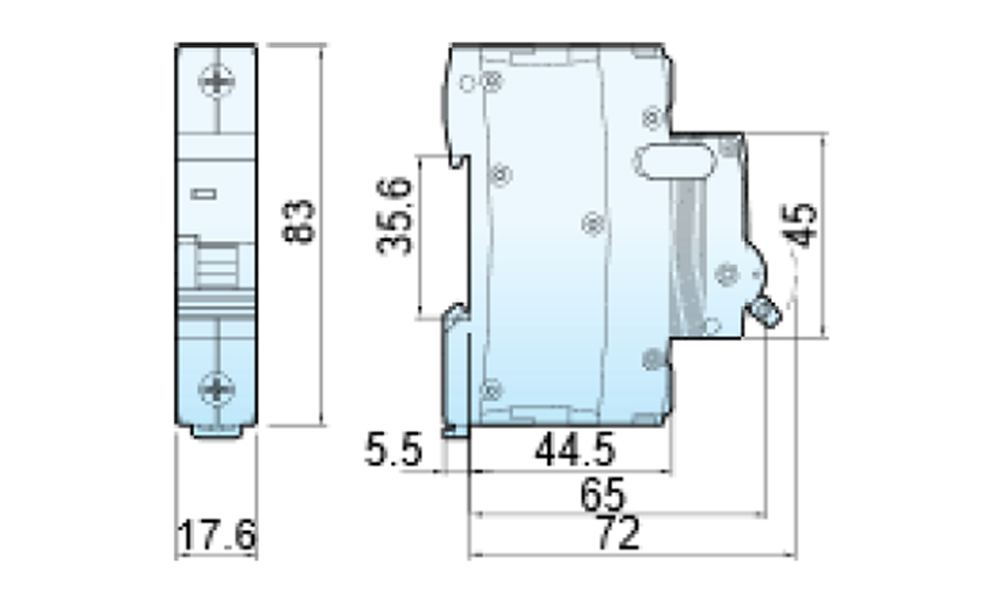

Dimension
