DCRL
Range Name
5
Number of steps
| Type | Power Factor Controller | ||||
|---|---|---|---|---|---|
| DCRL5 | DCRL8 | DCRG8 | |||
| Number of steps | 5 [5] | 8 [8] | 8 [8] | ||
| Expandable with EXP1007 | up to 8 | up to 14 | Up to 18-24 | ||
| Rated voltage (Ue) | 600 VAC | ||||
| Operating range | 50…720 VAC | ||||
| Auxiliary supply voltage [Us] | 100-440VAC | 100-415VAC | |||
| Rated Number of current input | 1 | 3 | |||
| Current range | 0.025…6A~ for 5A scale | ||||
| Standard | IEC 61010-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61010-2-030, UL 508 | IEC 61010-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 | |||
| Endurance | Electrical | 10⁵ Cycles | 10⁵ Cycles | ||
| Mechanical | 10⁵ Cycles | 30 x 10⁶ Cycles | |||
| Mount | Flush mount cut out 92x92mm | Flush mount cut out 138x138mm | |||
| Size [mm] | 96×96 | 144×144 | |||
| Terminal | Plug-in removable | ||||

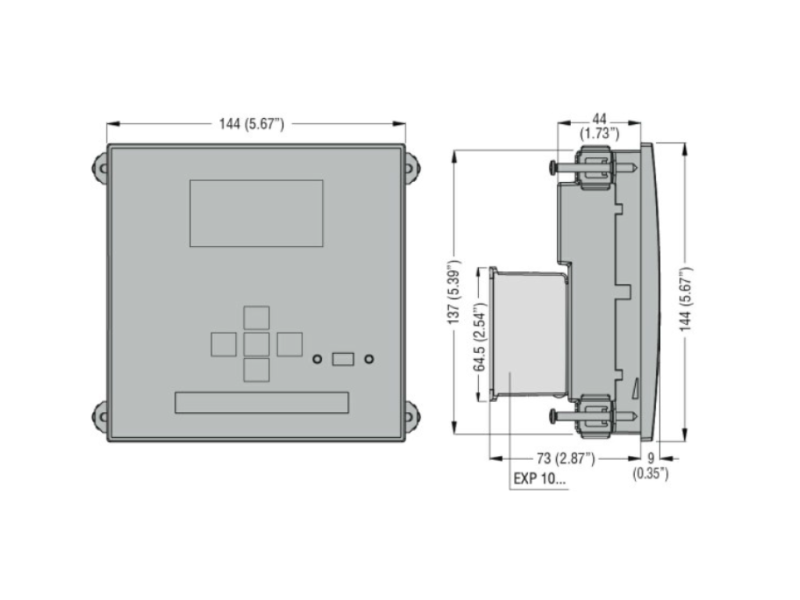

| Dimension |
|
|
|
||
