LIN
Range Name
1P
Number of Pole
NH
Type
000
Size
160
Rated Current
| Type | Cylindrical Fuse Links and Square Pipe Fuse links | |||
|---|---|---|---|---|
| LIN1MCY103832 | LIN1PNH000160 | LIN3PN000160 | ||
| Type | CY | NH | ||
| Size | 10×38 | 000 | ||
| Rated Current [ln] | 32A | 160A | ||
| Number of Pole | 1P | 1P | 3P | |
| Short Circuit Impacting | 120kA | |||
| Standard | IEC 60269-1, IEC 60269-2, IEC 60269-2-1, IEC 60947-3 | IEC 60269, GB13539 | ||
| Rated Voltage [Ue] | 690V | |||
| Weight | 56g | 170g | 516g | |
| Terminal | Connection | Pillar Clamp (Cable up to 16mm2) | Lug type (Cable up to 70mm2) | |
| Tightening torque | 2 N.m | M8 Screw 8-10 N.m/td> | ||
| Mount | On 35 mm DIN rail | Plate mounted | ||
| Width | 18mm | 34mm | 100mm | |
| Height | 81mm | 122mm | ||

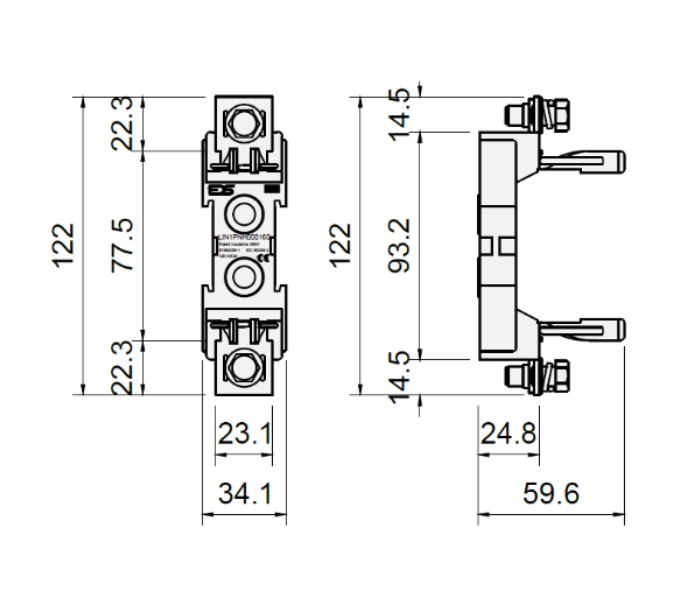

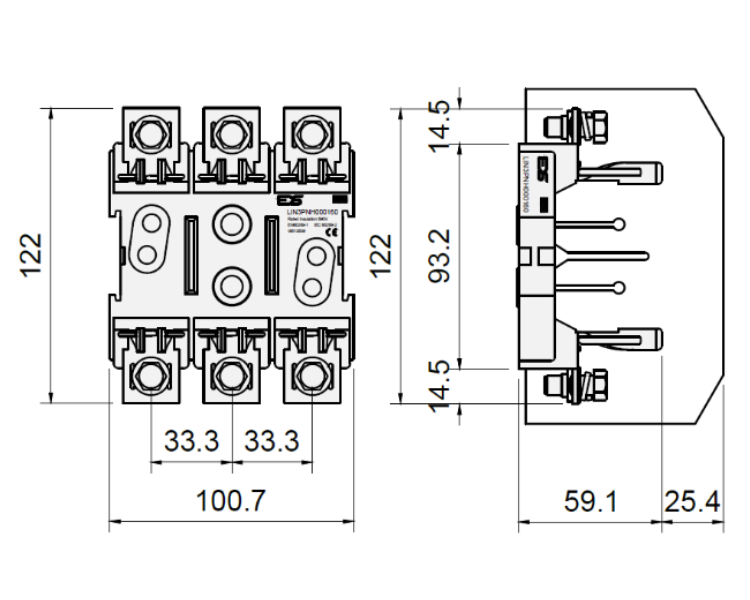

| Dimension |
|
|
|
|
